The cantilever canopy
Equinox
Cantilevered outriggers, solid aluminium trays, integrated gutter and head flashing.
A closer look at Equinox
The live 3D view isn't available on this device. Showing a still.
Kitset design. This 4.2 m canopy is 112 parts, engineered as one modular system and ordered by size.
No posts. Aluminium outriggers carry the whole canopy off the wall. Standard depths are 1600, 1800, 2000, 2200 and 2400 mm.
Drawing: side elevation. The canopy reaches from the wall face to the front edge with no posts. Snow and dead load act downward and wind uplift acts upward.Engineered before you order. Site-specific engineering data and PS1s available on request.
Drawing: plan. The outline shows the depth and length chosen.Continuous gutter at the rear. The canopy falls at 5° into the integrated gutter.
Only the fixings pass through the wall. The system mounts outside the weather line, with six fixings at each outrigger.
Standard details for a range of cladding types.
Drawing: section through the fixing. The coach screws pass through the backing rail and the weather line into the wall, in two rows 155 millimetres apart.Solid aluminium, stiffened at the edge. 4 mm panels screw to the outriggers with M5/M6 screws. The joints between them are sealed with 1 mm foam tape.
Delivered as a complete kitset, ready for installation. Every part of your canopy packs flat: a tray pack, with the long lengths bundled alongside. Fewer trades and fewer hold-ups on site.

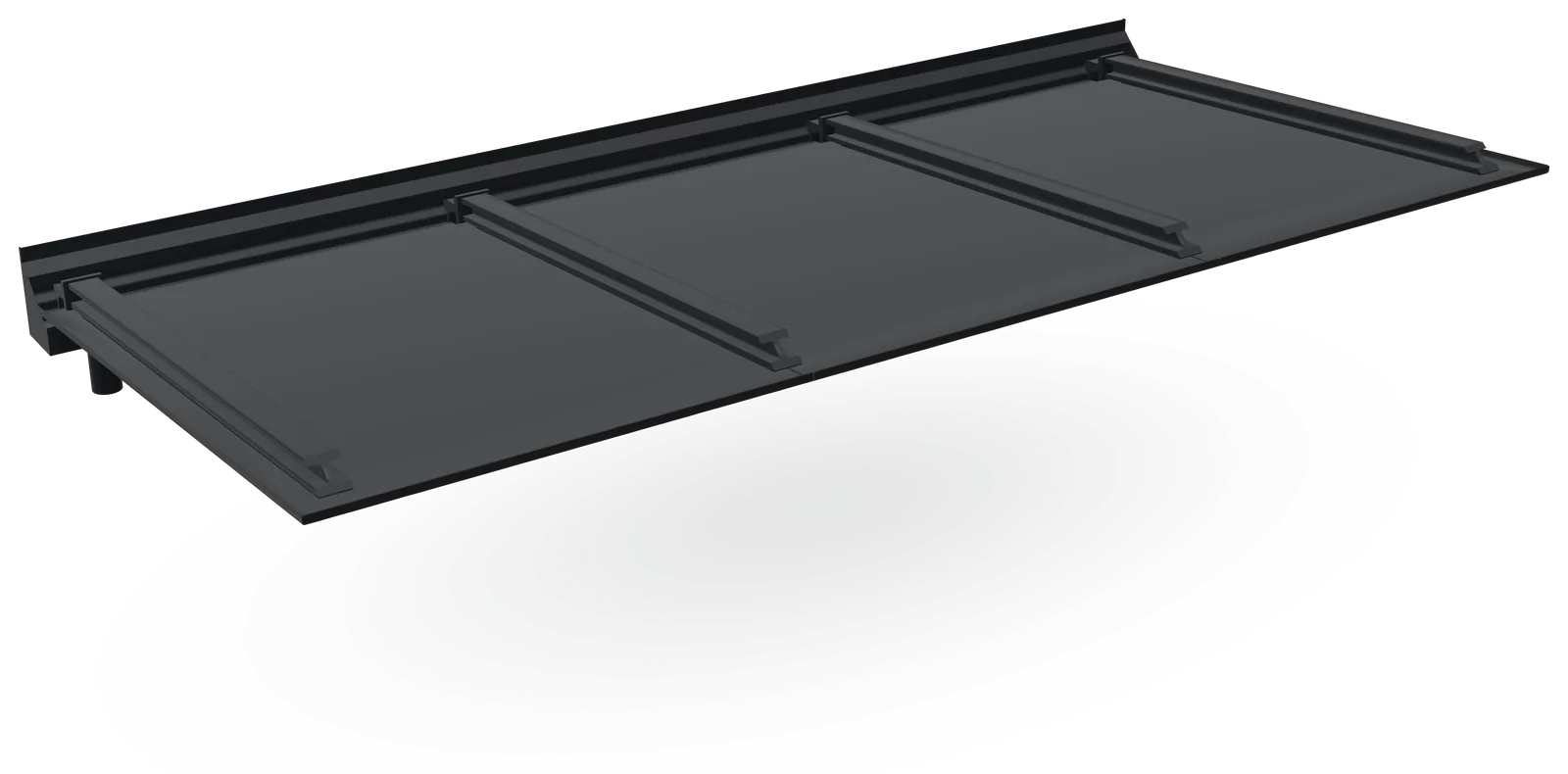

3.60 mLong lengths, bundled3 panels, 4 outriggers, backing rail, gutter, head flashing and dropper, supplied complete with all fixings and components. Panels 1200 mm wide as selected. Final bill of materials confirmed with quote.
Drawing: the kit for this 3.60 metre canopy, packed. A tray pack, and the long lengths bundled at 3.60 metres.
Matt Black. Colours shown are indicative. In daylight.
Rounded to 200 mm steps, up to 6000 mm.
At a glance
Equinox in three numbers.
Installation

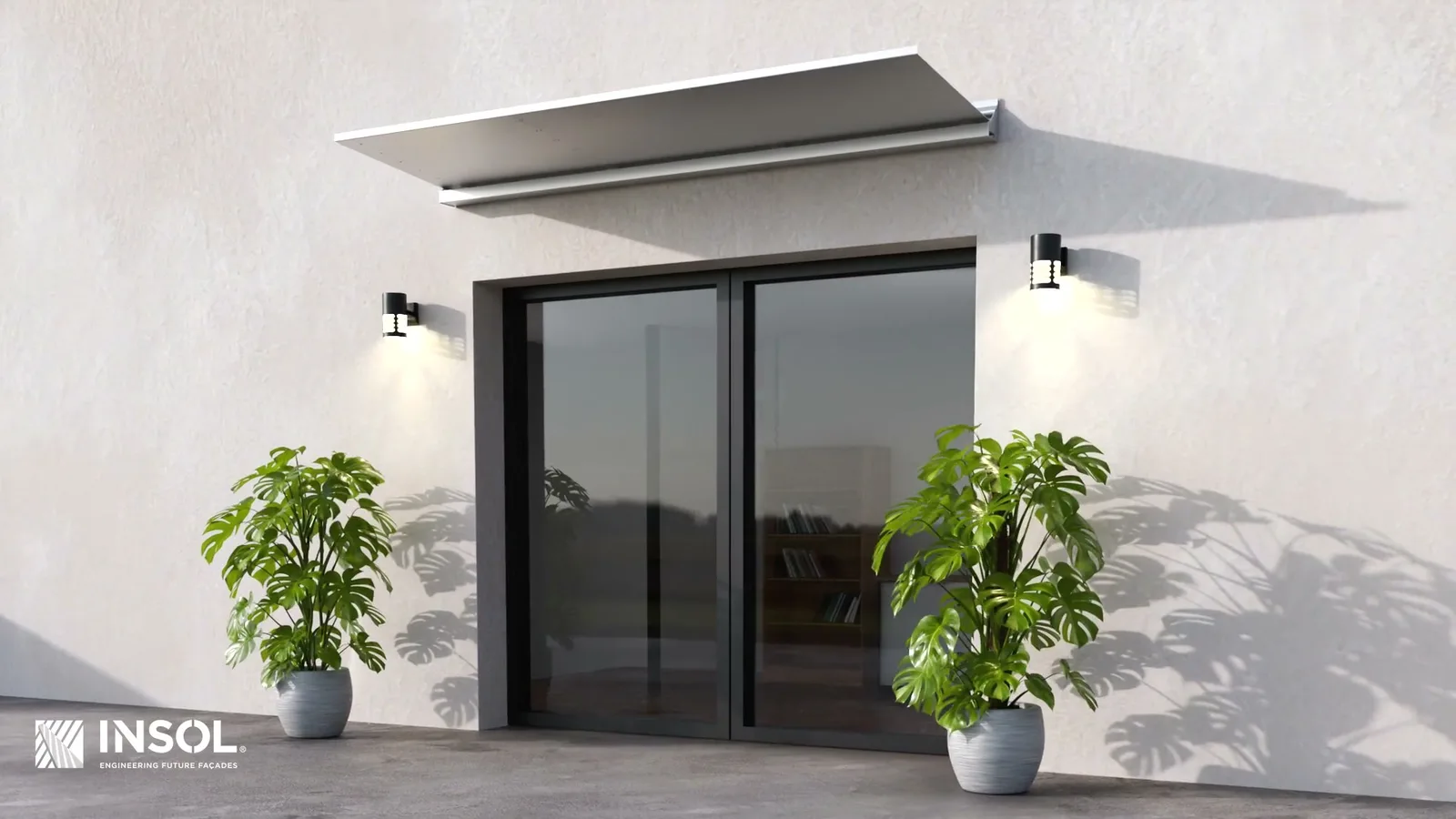

How Equinox goes up. One trade, six steps.
Backing rail
Backing rail fixed to wall structure with fasteners supplied and EPDM rubber washers
Mounting block assembly
Outriggers pre-assembled to mounting blocks, and end caps fitted
Outrigger brackets
Outrigger brackets installed to backing rail with T-bolts
Head flashing
The head flashing clipped on and sealed.
Canopy trays
Trays sealed with foam tape and screwed to the outriggers.
Gutter
End caps riveted on, droppers sealed, and the gutter clipped onto the rails.
About Equinox
Technical specification.
Equinox is the canopy with the engineering already done. Choose the depth and the finish, and the span table, the details and the fixings come with it.
Fixing and options
Fixed outside the weather line.
Fixing penetrations sealed with EPDM rubber washers and covered by head flashing
Standard fixing details
Downloads
Everything the spec needs for Equinox.
Data sheet, installation guide and specification clauses.
FAQ
Questions about Equinox.
Equinox is the cantilevered system: outrigger brackets, 4 mm solid panels and an integrated gutter, in five standard depths from 1600 to 2400 mm with no posts. Horizon is a simpler folded 3 mm canopy on tie rods or brackets, and the lower-cost option for a standard entrance.
Yes. Standard Equinox and Horizon designs are pre-engineered, with site-specific engineering data available for standard designs.
Equinox comes in five standard depths: 1600, 1800, 2000, 2200 and 2400 mm. The length is fabricated to suit, in 200 mm increments. Try sizes in the 3D on the Equinox page.
It's really easy. Choose a size and finish, then ask for a quote. We'll confirm the kit, engineering and the lead times, then send out a ready-to-install canopy that can be installed by a single trade.
Powdercoat. Matt Black, White and Grey are the standard colours for Equinox and Horizon, and other colours are available, like the Farmlands canopy in its brand colours.
Anyone. The kitset canopy system has a very simple installation process and clear installation guides allowing installation by builders, contractors, and property owners. Refer installation guide for further installation details or contact our team for further advice.
Timber, steel and concrete structure. Refer to standard fixing details for further information on connection to a variety of structures and cladding systems.
